An automatic sticker labeling machine is a type of machine that is used to apply labels or stickers to products or packaging in a fully automated process. These machines are typically used in manufacturing and packaging operations to efficiently and accurately label products with information such as product names, descriptions, prices, and barcodes.
Automatic sticker labeling machines can be programmed to apply labels to specific locations on a product or packaging, and can often be integrated with other production equipment to create a fully automated production line. They may also have features such as label sensors to ensure that labels are applied correctly, and may be able to handle different types of labels and packaging materials.
There are several different types of automatic sticker labeling machines available, including roll-fed labeling machines, which apply labels from a roll of label stock, and tamp-blow labeling machines, which use a tamp pad to apply labels to containers or other products. There are also pressure-sensitive labeling machines, which use adhesive to apply labels, and sleeving machines, which apply labels or sleeves to containers or packaging.
Automatic sticker labeling machines are used in a wide range of industries, including food and beverage, pharmaceuticals, cosmetics, and household products. They are an important tool for accurately and efficiently labeling products for distribution and sale.

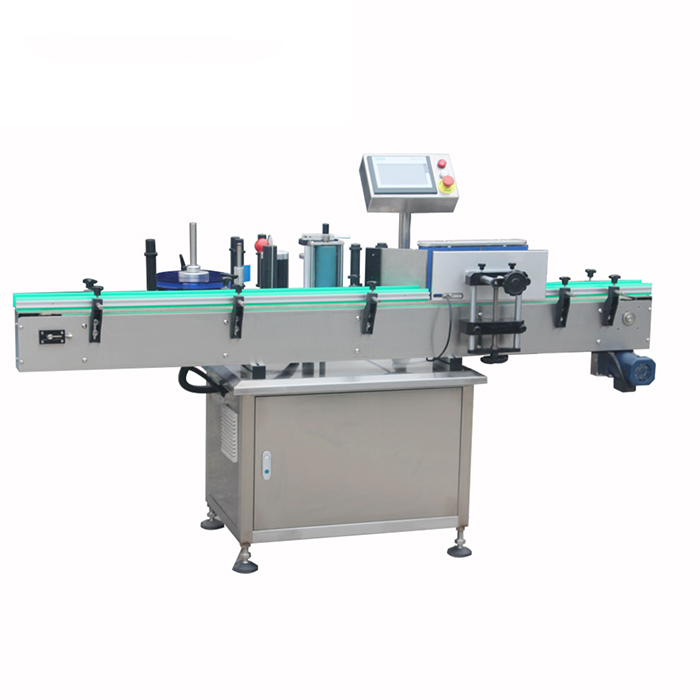

Round Bottle Labeling Machine
- This machine is used for using the Taiwan touching type of PLC control. It is made of photoelectricity equipment of German LEUZE.
- Synchronization electrical,timing electrical, conveyor belt. Import strap etc correlative part.
- The design of mainframe part absorbed label transmit of import machine and solved the unsteady ingredient of homemade common label.
- The machine is suitable for various specifications of bottles. Its operation is easy and it can be finished in a short time.
- The whole machine is designed to meet GMP standard.
- This machine is suitable for processing the big round label of medicine, chemical, food, commodity etc.
| Voltage | AC220V 50/60HZ |
| power | 980W |
| capacity | 60-120b/m |
| accuracy | +1mm（according to bottle） |
| Bottle Diameter | 25-120mm |
| bottle height | 40mm～～250mm |
| Label size | H10mm～～150mm L 15～～300mm(can be customized） |
| Label core | Φ76mm label roll Dimeter：Φ300（max） |
| Weight | 200KG |
| Dimension | 1950X1100X1300mm |
| Conveyor width | can be customized |

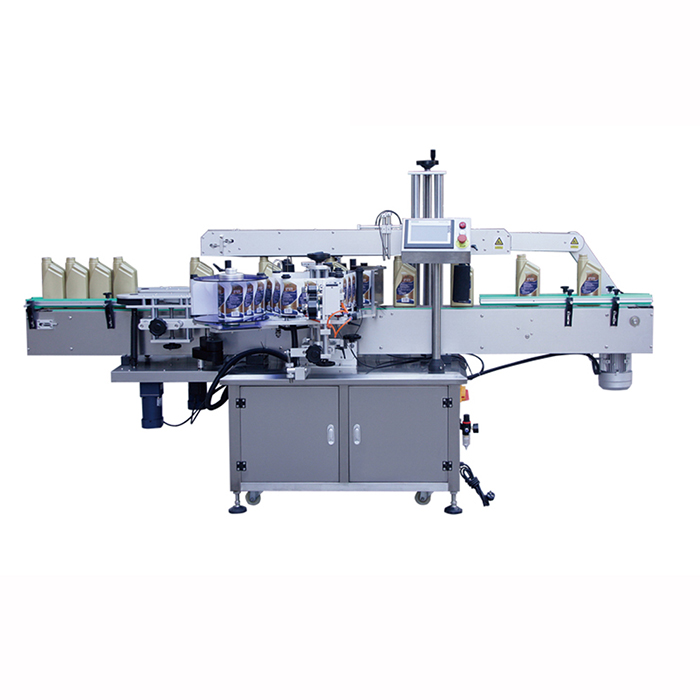

Double Sided Labeling Machine
- PLC Control,Automatically check the length of labels.Equipped with warning device of insufficient labels,broken labels.
- Servo motor cpntrol,stable labeling.
- The label head is adjustable for different size of bottles.
- It fits for different sizes of labels.
- The height of label height is adjustable to fits different label position on the bottle.
- The angle of label head is adjustable.
| Labeling Speed | 60-350pcs/min (Depending on label length and bottle thickness) | ||
| Height of Object | 30-350mm | ||
| Thickness of Object | 20-120mm | ||
| Height of Label | 15-140mm | ||
| Length of Label | 25-300mm | ||
| Label Roller Inside Diameter | 76mm | ||
| Label Roller Outside Diameter | 420mm | ||
| Accuracy of Labeling | ±1mm | ||
| Power Supply | 220V 50/60HZ 3.5KW Single-phase | ||
| Gas Consumption of Printer | 5Kg/cm^2 | ||
| Size of Labeling Machine | 2800(L)×1650(W)×1500(H)mm | ||
| Weight of Labeling Machine | 450Kg | ||

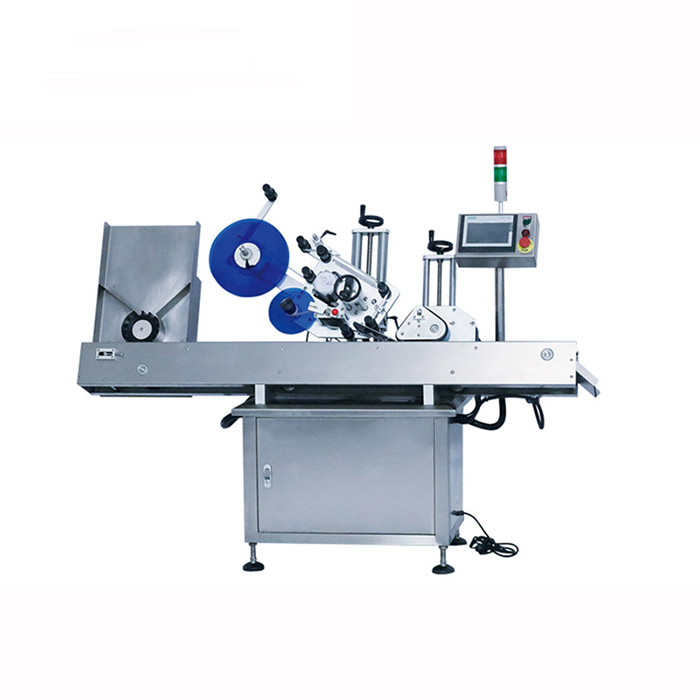

Horizontal Round Bottle Labeling Machine
The equipment is suitable for labeling the circumference or semi-circumference of various standing unstable cylindrical objects. Widely used in cosmetics, food, medicine, daily chemical, electronics, toys, hardware, plastic and other industries, can achieve a full week/half week labeling. Adopt horizontal transmission, horizontal label,increase stability, improve label efficiency. It can print batch number and production date at the same time, realize the integration of labeling and coding, reduce packing process and improve production efficiency. Suitable for self-adhesive label, self-adhesive film, Electronic Supervision Code, bar code, two-dimensional code label, Transparent label, etc. . The equipment has high stability, good labeling effect, no bubbles, no wrinkles, high labeling accuracy.
- 304 Stainless steel frame construction
- Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling;
- Automatic infeed turntable diameter 550mm
- Hot foil coding machine
- Servo motor and PLC and Touch Screen assure prefect label exact
- Automatically check the length of labels
- Equipped with warning device of insufficient labels, broken labels
- No bottle, no labeling
- No labels, no labeling and automatic warning
- No Ribbon, automatic warning
- The bottle stand on the tray, and automatic lay down on conveyor for labeling
- Servo motor control label, no label break, high speed.
| Drive | Servo Motor Driver |
| Labeling Speed | 100-180pcs/min |
| Bottle diameter | 12-30 mm |
| label Width | 10-90mm |
| label length | 15-100mm |
| Precision | ±1mm |
| Label Roll | Max: 300mm |
| Label Core | 75mm |
| Machine Size | 1800*600*1400mm |
| Power | 110/220v 50/60Hz 500W |

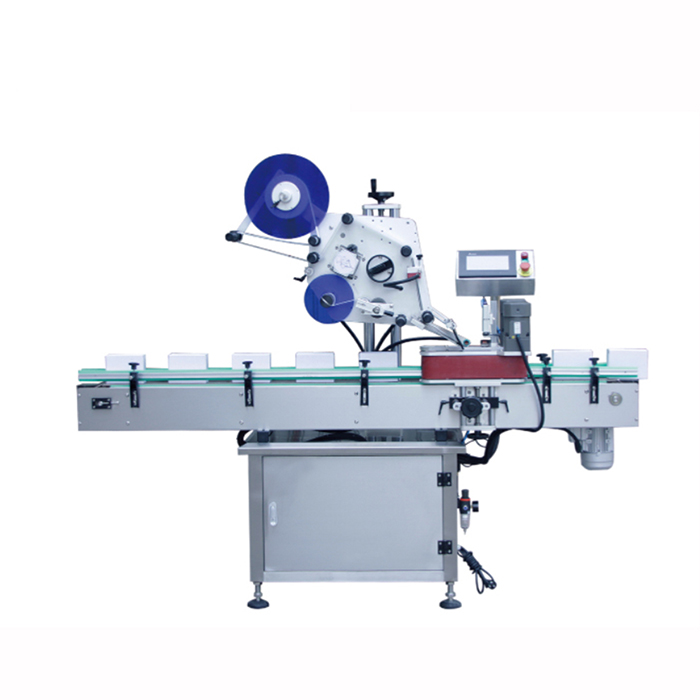

Top Flat Labeling Machine
This type surface adhesive labeling machine to achieve areasonable production goals and design. The labeling process is automatic operation, simple operation, fast production speed,unified labeling location, beautiful, neat; The equipment is mainly suitable for automatic labeling of flat bottles and square bottles in food and beverage, grain and oil, medicine, daily chemical and chemical industries.
- Machine suitable for any shape product two sides labeling, such as bottle, can carton, food container, medicine, daily chemical industry and so on.
- PLC and touch screen control panel with easy operation, many units parameter setting and save.
- Automatic stop when label breaks down or runs out, Malfunction self-testing and display with alarm.
- Machine can use alone or connect with filling packing line use.
- All components are precisely processed by CNC to ensure high quality.
- All electrical configurations are big international brand, such as Simens, Mitsubishi, WEINVIEW, Yaskawa,Keyence, Omron, SMC and so on.
- High labeling accuracy, long-time using.
| labeling speed | 20-150pcs/min |
| height of object | 30-200mm |
| thickness of object | 20-200mm |
| height of label | 15-110mm |
| length of label | 20-300mm |
| label roller inside | 76mm |
| label roller outside | 350mm |
| accuracy | ±0.8mm |
| power supply | 220V /50/60HZ/0.75KW |
| gas consumption of printer | 5kg/cm^2(if add coding machine) |
| size of labeling machine | 1600*550*1600 |
| weight of labeling machine | 150kg |

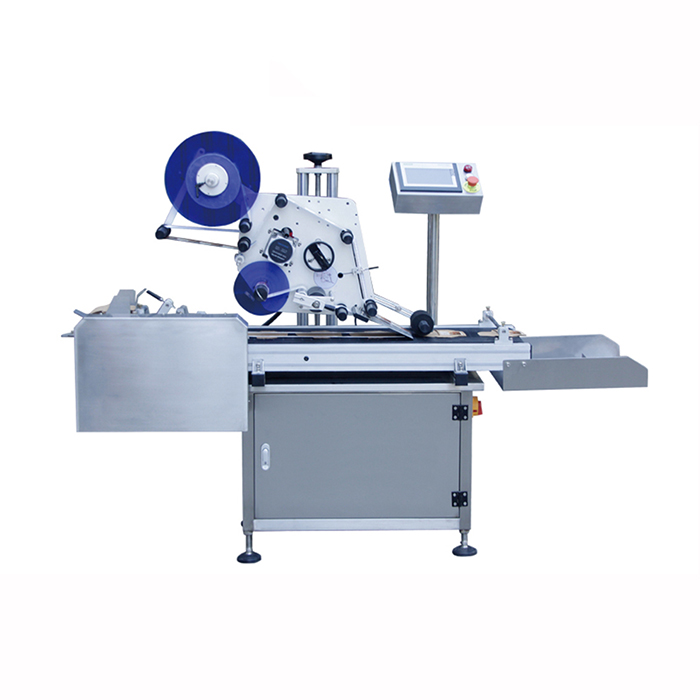

Paging Flat Labeling Machine
The automatic labeling machine can work for all kinds of objects with the plane, flat surfaces such as cards, bags, books, unshaped boxes, cartons, paper, pouch, and another packaging bag, etc. Adopts automatically separate stacks of packaging bags or cards and convey single piece onto the conveyor belt so as to facilitate labeling machine to stick each sticker onto objects and thus reduce the trifles of manual paging to improve labeling efficiency. Widely used in food, medicine, daily chemical, electronic, metal, plastics, and other industries. It has an optional date coding device, that realizes date coding on stickers.
- Advanced touch human-computer interface;
- Easy to replace label,operate and maintain;
- Large adjustment range of labeling ,suitable for most bottle/box/paper/card
- Can be used alone, as well as designed to be connected with assembly line;
- It covers little room;
- It can be equipped with printing equipment according to customer's demands.
| voltage | AC220V 50/60HZ |
| power | 1200W |
| capacity | 30-100 pieces/min |
| accuracy | +1mm |
| conveyor speed | 0-50m/m(adjustable) |
| products size | accordingly |
| Label size | H10mm～～150mm L15～～300mm（customized） |
| Roll size | Iner Φ76mm outer：Φ300 |
| Weight | 200KG |
| Dimension | 2200*750*1500mm |
| Conveyor width | customized |

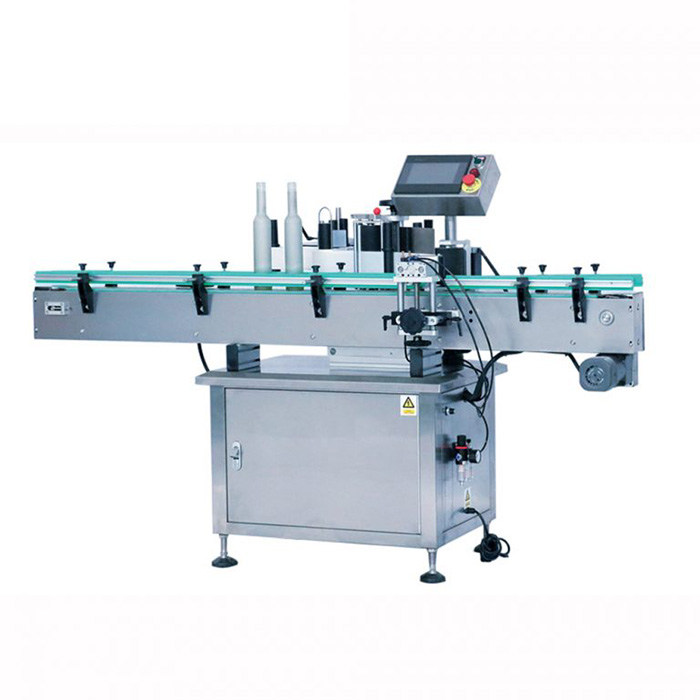

Round Bottle Positioning Labeling Machine
It is a device that attaches rolls of paper labels or self-adhesive labels to bottles, products or prescribed packaging. The back of the label is self-contained with adhesive and is regularly arranged on the smooth backing paper, which can be automatically peeled off by the feeder or the peeling mechanism on the labeling machine.
Applicable for circumferential surface labeling bottles of class object, can stick a single standard and double standard, is double the distance between flexible adjustment, such as gel water round bottles, food cans such as labeling, widely used in cosmetics, food, medicine, disinfectant, etc. Equipped with circumferential position detection device, which can realize location specified in the circular surface labeling. Optional ribbon printer and spurt the code machine, production date and batch number printed on the label information, integrates label - code.
- Automatic labeling machine has excellent labeling quality, and adopts elastic pressure-covered labeling belt, and the labeling is without wrinkles;
- Automatic labeling machine is sensitive to use, the bottle is labelled upright, and has the function of automatic bottle separation. It can be produced by a single machine or connected to an assembly line;
- Automatic labeling machine is intelligently controlled, with the functions of labeling without labels, label-free automatic correction and label automatic detection, to avoid missed labeling and label waste;
- Automatic labeling machine has high stability, and the labeling speed, conveying speed and bottle dividing speed can be adjusted steplessly, which can be adjusted as needed;
- Use three rods to adjust the organization, make full use of the stability of the triangle, and the whole machine is sturdy and durable.
| Voltage | AC220V 50/60HZ |
| power | 1500W |
| capacity | 50-100b/m |
| Accuracy | ±1mm |
| Bottle height | 20mm～～300mm（can be customized） |
| label size | H20mm～～150mm L15～～300mm（can be customized） |
| Roll diameter | innerΦ76mm outer：Φ300（max） |
| Weight | 200KG |
| Dimension | 1950X1100X1300mm |
| Diameter | Φ30—130mm（can be customized） |

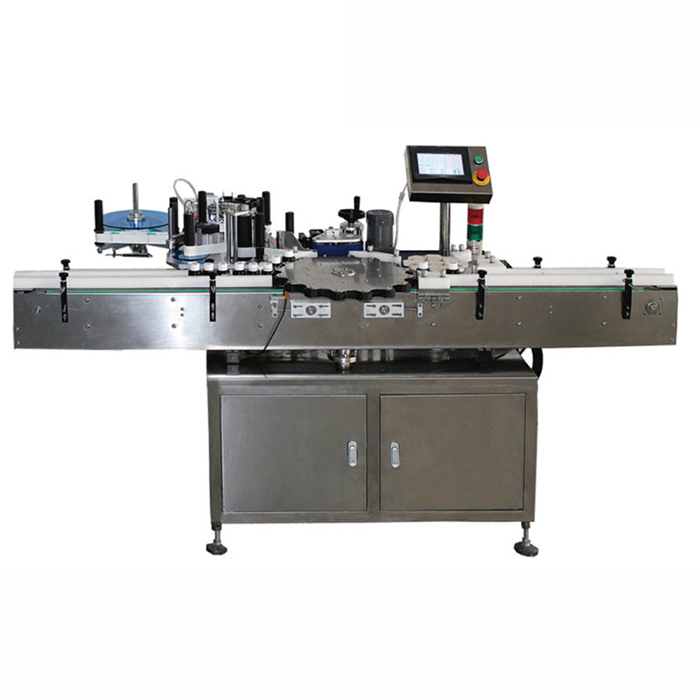

Rotary High Speed Positioning Labeling Machine
The labeling equipment is for the round bottle labeling in the industry like food, oil, pharma, wine, cosmetics and so on. The machine with elegant design can be easily operated and maintained by the common worker, who requires no special training in operation this machine.Just give a simple adjustment to produce another product when you want to swap the different kinds bottle labeling.
- The advanced affinity man-machine interface system, easy operation, complete function, has the rich online help function
- Unique bottle at three-point position, avoid to linear labeling machine labeling bottle is irregular, and the bottle is not caused by the error of vertical labeling skew, then it let labeling more accurate, beautiful, caresses
- Automatic photoelectric detection, it has the function that nothing come from conveyor and no stick label and without label automatic correction or alarm automatic detection function, prevent leakage and waste
- The machine structure is simple, compact, easy to operation and maintenance
| Dirive | servo motor driven |
| Direction | Left to Right |
| Bottle Diameter | 20- 100 mm |
| Bottle Height | 40-300mm |
| Labeling Speed | 50-150 pcs/min |
| Label Size | Width:20-200mm Length:20-200mm Machine will be customized if exceeding the size |
| Accuracy | ±0.5mm |
| Label Roll Core Diameter | Max:300mm |
| Machine Size | 2400*900*1400mm |
| Weight | 300kg |
| Power | AC 220V/380V 50/60HZ 2.5KW |

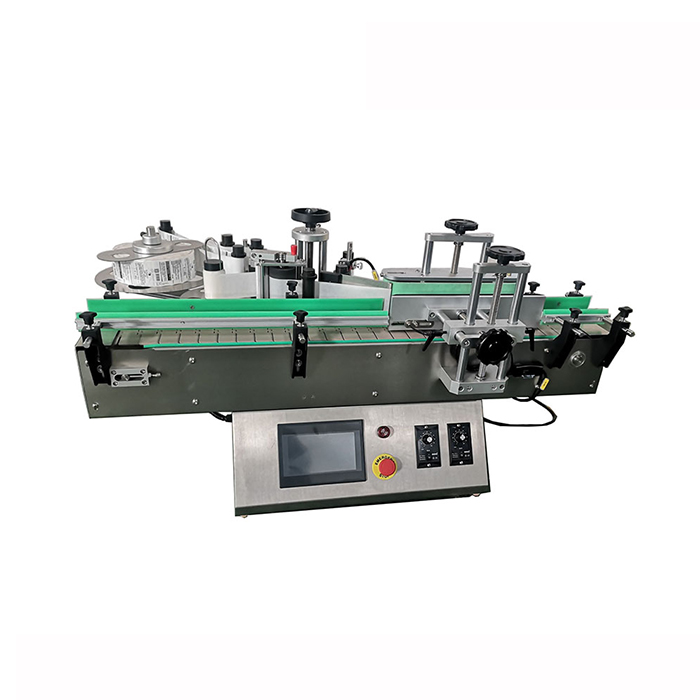

Automatic Desktop Labeling Machine
The desktop type labeling machine can save working space,but it can work automatically and accurately after you adjust and test working data.The whole machine use S304 stainless steel and anodized senior aluminum alloy material, with high corrosion resistance and never rust. It is widely used in beverage, health care, food, medicine, daily chemical and light industry. (note: our machine can be customized rely on your requirement)
- Has a wide range of applications, can meet the full or half circular stickers, the switch between the bottle stickers is simple, easy to adjust;
- Label overlap degree is high, the correction mechanism adopts the deviation belt detour, the standard belt does not deviate, the tilt of the labeling part can be adjusted, and the label overlap degree is high;
- Labeling quality, using elastic pressure covering belt, marking flat, wrinkle, improve the packaging quality;
- Application is flexible, bottle standing stickers, desktop placement, small area, easy to use;
- Intelligent control, automatic photoelectric tracking, with no labeling without labeling, no calibration of automatic correction and label automatic detection functions, to prevent leakage and label waste;
| Capacity (pcs/min) | 20-160 |
| Driving Mode | Servo motor |
| Labeling accuracy | ±1mm |
| Labeling Speed(m/min) | ≤35 |
| Label Specification | adhesive sticker, transparent or opaque |
| Suit bottle size | Can customized |
| Suit label size | Height 20-260mm Length 25-300mm |
| The inner diameter or label roll | 76mm(min) |
| The outer diameter of label roll | 250mm(max) |
| Power | 250w |
| Voltage | can customized, 110V/220V/380V |
| Machine size | 1200x1000x780mm |
An automatic sticker labeling machine is a specialized piece of equipment that is used to apply labels onto a variety of different products. These machines are commonly used in the food and beverage, pharmaceutical, and cosmetics industries to apply labels to bottles, containers, and other packaging materials.
There are several different types of automatic sticker labeling machines available on the market, including pressure sensitive labeling machines, wrap around labeling machines, and cold glue labeling machines. Each type of machine is designed to apply labels in a specific way, and is suitable for different types of products and labeling applications.
In this ultimate guide, we will cover everything you need to know about automatic sticker labeling machines, including how they work, the different types of machines available, and the key considerations you should take into account when choosing the right machine for your business.
How Do Automatic Sticker Labeling Machines Work?
Automatic sticker labeling machines are designed to apply labels to a variety of different products, including bottles, containers, cans, and other packaging materials. These machines typically operate using one of three main labeling methods: pressure sensitive labeling, wrap around labeling, or cold glue labeling.
Pressure sensitive labeling machines use a roll of self-adhesive labels, which are applied to the product using pressure. The labels are typically fed through the machine using a set of belts or conveyors, and are then pressed onto the product using a labeling head. This type of machine is suitable for applying labels to a wide range of products, including bottles, containers, and cans.
Wrap around labeling machines, as the name suggests, apply labels around the circumference of a product. These machines are typically used to apply labels to cylindrical products, such as bottles and cans. The labels are fed through the machine using a set of belts or conveyors, and are then wrapped around the product using a set of rollers.
Cold glue labeling machines use a roll of paper labels that are coated with a layer of water-based glue. The labels are fed through the machine using a set of belts or conveyors, and are then applied to the product using a labeling head. The glue is activated by moisture, so the labeled product must be allowed to dry before it can be packaged or shipped.
Regardless of the labeling method used, automatic sticker labeling machines typically operate using a similar process. The product to be labeled is fed into the machine using a set of conveyors or other feeding mechanism. The labels are then applied to the product using a labeling head or other labeling mechanism. Once the label has been applied, the labeled product is then transferred to a packaging or shipping area.
Types of Automatic Sticker Labeling Machines
There are several different types of automatic sticker labeling machines available on the market, each of which is suitable for different types of products and labeling applications. Some of the most common types of machines include:
Pressure sensitive labeling machines: These machines are suitable for applying self-adhesive labels to a wide range of products, including bottles, containers, and cans.
Wrap around labeling machines: These machines are designed to apply labels around the circumference of cylindrical products, such as bottles and cans.
Cold glue labeling machines: These machines use a roll of paper labels coated with water-based glue, which is applied to the product using a labeling head.
Inline labeling machines: These machines are designed to apply labels to products as they move along a production line.
Rotary labeling machines: These machines use a series of rollers to apply labels to products as they pass through the machine.
Semi-automatic labeling machines: These machines are operated by a human operator, who manually feeds the product into the machine and positions it for labeling. These machines are generally less expensive than fully automatic machines, but they require more manual labor and are not suitable for high-volume production.
Fully automatic labeling machines: These machines are fully automated and do not require a human operator. They are suitable for high-volume production, but are generally more expensive than semi-automatic machines.
When choosing an automatic sticker labeling machine, it is important to consider the specific needs of your business. Factors to consider include the type of products you need to label, the volume of production, and your budget. It is also important to consider the size and layout of your production facility, as some machines are more suitable for certain types of environments.
Key Considerations for Choosing an Automatic Sticker Labeling Machine
There are several key considerations you should take into account when choosing an automatic sticker labeling machine for your business. These include:
Type of labeling method: As mentioned above, there are several different types of labeling methods available, including pressure sensitive labeling, wrap around labeling, and cold glue labeling. Choose a machine that is suitable for the type of labels you plan to use and the products you need to label.
Production volume: Consider the volume of production you need the machine to handle. If you have a high volume of products that need to be labeled, you may need a more advanced and expensive machine. On the other hand, if you have a lower volume of production, you may be able to get by with a simpler and less expensive machine.
Product size and shape: Consider the size and shape of the products you need to label. Some machines are better suited for labeling certain types of products, such as cylindrical bottles or flat containers.
Labeling accuracy: Choose a machine that is capable of applying labels accurately and consistently. If the labels are not applied correctly, it can lead to quality issues and customer complaints.
Speed: Consider the speed of the machine, as well as the speed of the production line. A faster machine may be more expensive, but it can help to increase efficiency and reduce costs in the long run.
Maintenance and repair: Choose a machine that is easy to maintain and repair, as this can help to reduce downtime and increase overall efficiency.
Price: Consider your budget when choosing a labeling machine. Higher-end machines may have more advanced features and be more suitable for high-volume production, but they may also be more expensive.
Conclusion
An automatic sticker labeling machine is a specialized piece of equipment that is used to apply labels onto a variety of different products. There are several different types of automatic sticker labeling machines available, including pressure sensitive labeling machines, wrap around labeling machines, and cold glue labeling machines. When choosing a labeling machine, it is important to consider the specific needs of your business, including the type of products you need to label, the volume of production, and your budget. By considering these factors, you can choose the right machine for your business and improve efficiency and productivity.
